This tab shows a list of all passes for selected task, with their states.

For many programs, a list of files can the set as an input, in which case each file from a list will be processed by a separate pass of a program. If a task has more than one property set as a list of files, all combinations of files will be processed. For instance, if Property 1 is specified as a a list containing three files, and Property 2 as a list of four files, there will be 4 x 3 = 12 passes, each one combination of input files. Total number of passes for one task cannot exceed 100,000.

The column in Results tab have the following meaning:
• Pass - an order number of current pass;
• State - pass status:
  • - in process;
  • - completed without errors or warnings;
  • - completed with warnings;
  • - completed with errors;
  • - aborted.
• View - view results. Icons have the same meaning as those in Results column of Project Tab, but for current pass only.
• Processing - pass processing time;
• Start time - pass start time.

For a pass selected in Results tab, the following information is displayed:

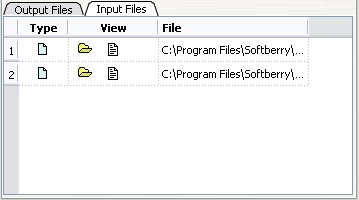

In the Input Files page, input files that were used by current pass:

Type - source of file:

• - file,
• - pipeline.

View - preview input files. Icons are the same as those in Results column of Project Tab, but for current pass only.

File - path of an input file or pipe identifier.

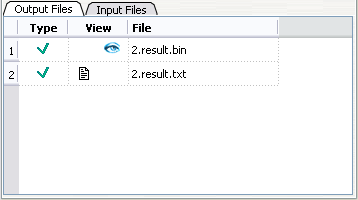

In the Output Files page, a list of output files with their status and shortcuts to preview:

Type - possible output variants:

• - Normal results file;
• - Warnings log file;
• - Errors log file.

View - preview results. Icons are the same as those in Results column of Project Tab, but for current pass only.

File - name of output file.
